STRIP / PCBA

Addressable LED Strip and PCBA Solutions

Built on Worldsemi LED driver IC, RGBIC, and RGBWIC technologies, our portfolio includes grouped-pixel high-voltage strips, individually addressable strips, high-grayscale strips, and custom PCBA integration.

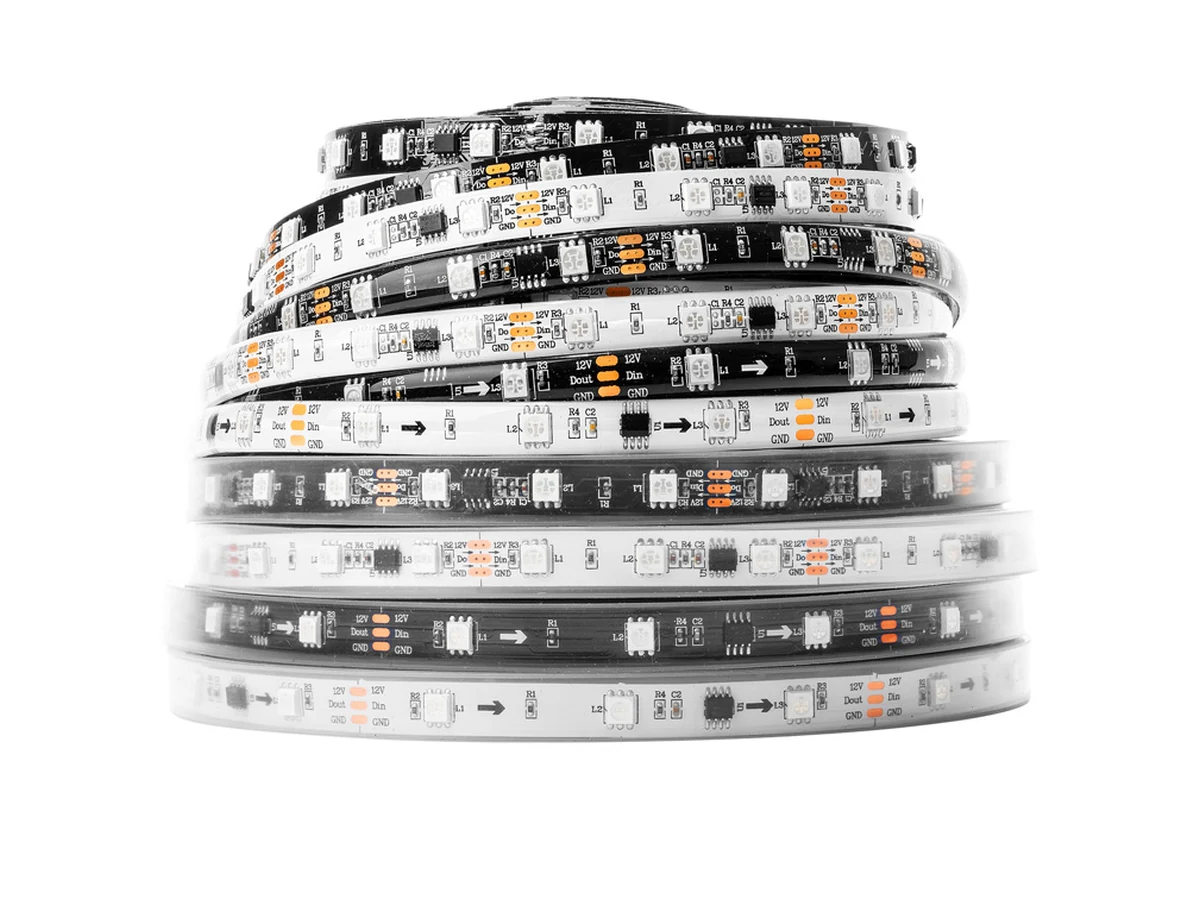

WS2811 and WS2818 high-voltage RGB addressable LED strips

WS2811 / WS2818 High-Voltage RGB Strip

WS2811 / WS2818 Series

Grouped-pixel addressable RGB strip

12V
30 LEDs/m · 10 pixels/m
48 LEDs/m · 16 pixels/m
60 LEDs/m · 20 pixels/m
24V
60 LEDs/m · 10 pixels/m
Options
36V / 48V custom

Custom voltage, LED/pixel density, PCB width, strip length, waterproofing and connector.

Request Configuration

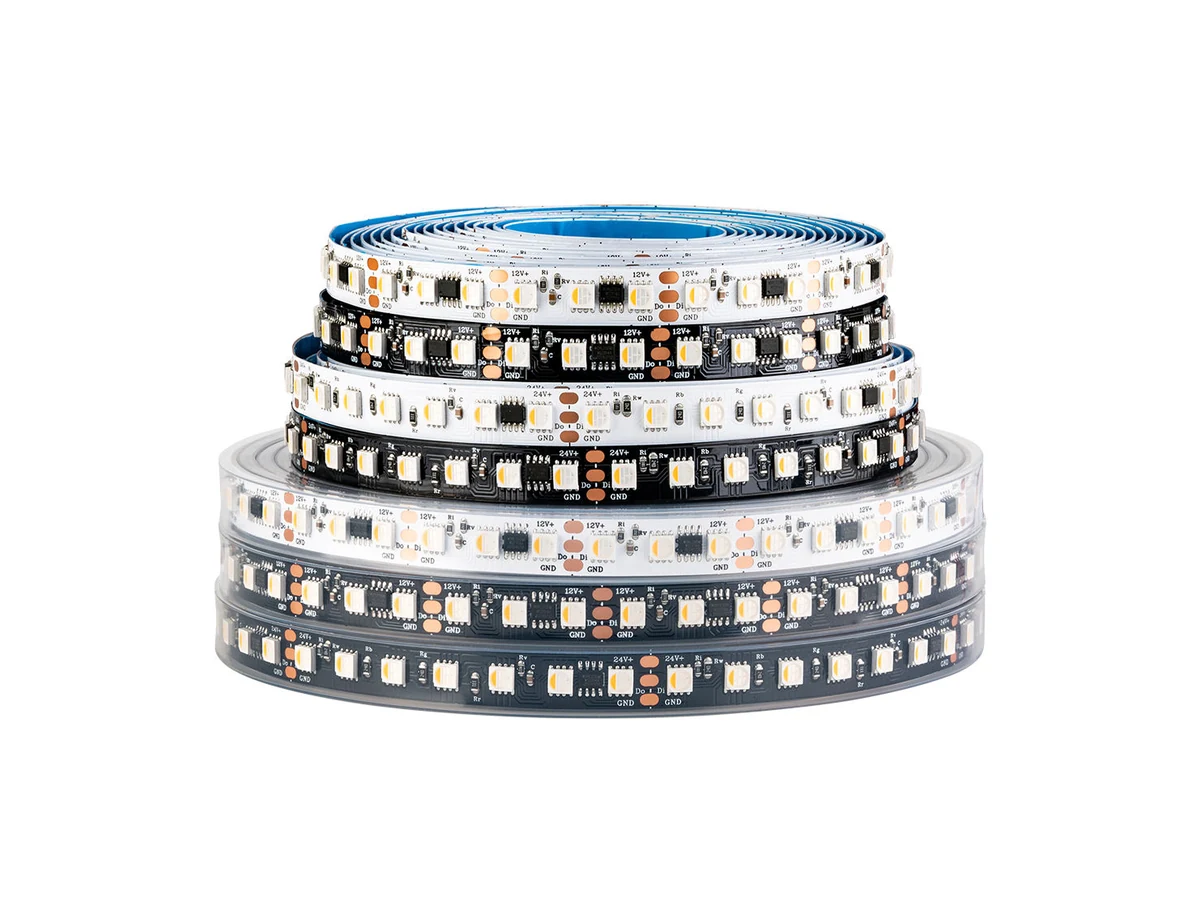

WS2814 high-voltage RGBW addressable LED strips

WS2814 High-Voltage RGBW Strip

WS2814 RGBW Series

Grouped-pixel addressable RGBW strip

12V
30 LEDs/m · 10 pixels/m
48 LEDs/m · 16 pixels/m
60 LEDs/m · 20 pixels/m
24V
60 LEDs/m · 10 pixels/m
Options
36V / 48V custom

Custom voltage, LED density, pixel density, white-channel CCT, PCB width, waterproofing, and connector options.

Request Configuration
WS2913 WS2914 and WS2915 high-grayscale LED strips

WS2913 / WS2914 / WS2915 High-Grayscale Driver Strip

WS2913 RGB · WS2914 RGBW · WS2915 RGBWW

5-bit current gain + 16-bit data

12V
30 LEDs/m · 10 pixels/m
48 LEDs/m · 16 pixels/m
60 LEDs/m · 20 pixels/m
24V
60 LEDs/m · 10 pixels/m
Options
36V / 48V custom

Custom channel type, voltage, LED/pixel density, PCB width, waterproofing and connector.

Request Configuration

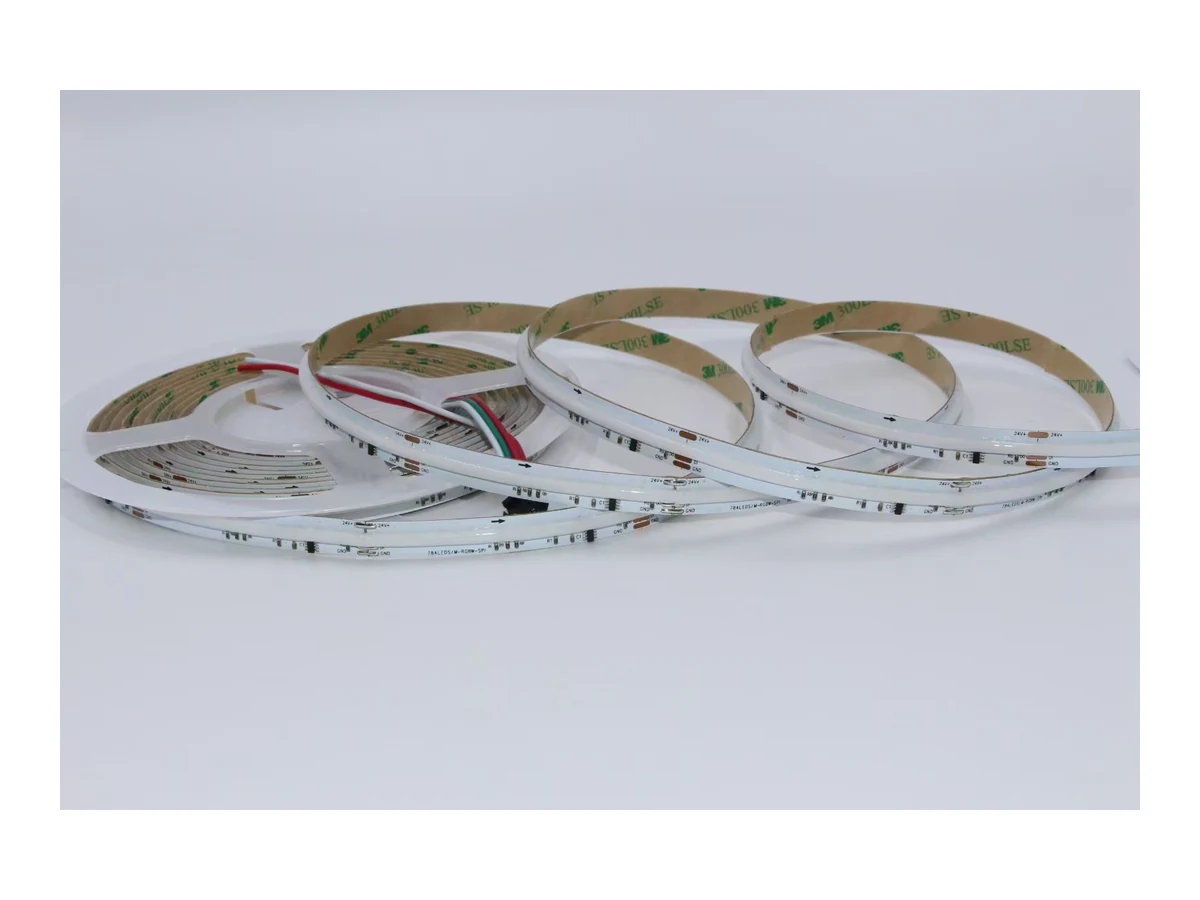

WS2811 and WS2818 high-voltage RGB COB LED strips

WS2811 / WS2818 High-Voltage RGB COB Strip

WS2811 / WS2818 COB Series

Continuous-light grouped-pixel RGB COB strip

12V
30 LEDs/m · 10 pixels/m
48 LEDs/m · 16 pixels/m
60 LEDs/m · 20 pixels/m
24V
60 LEDs/m · 10 pixels/m
Options
36V / 48V custom

Custom voltage, LED/pixel density, PCB width, strip length, waterproofing and connector.

Request Configuration
WS2814 high-voltage RGBW COB LED strips

WS2814 High-Voltage RGBW COB Strip

WS2814 RGBW COB Series

Continuous-light grouped-pixel RGBW COB strip

12V
30 LEDs/m · 10 pixels/m
48 LEDs/m · 16 pixels/m
60 LEDs/m · 20 pixels/m
24V
60 LEDs/m · 10 pixels/m
Options
36V / 48V custom

Custom voltage, LED density, pixel density, white-channel CCT, PCB width, waterproofing, and connector options.

Request Configuration

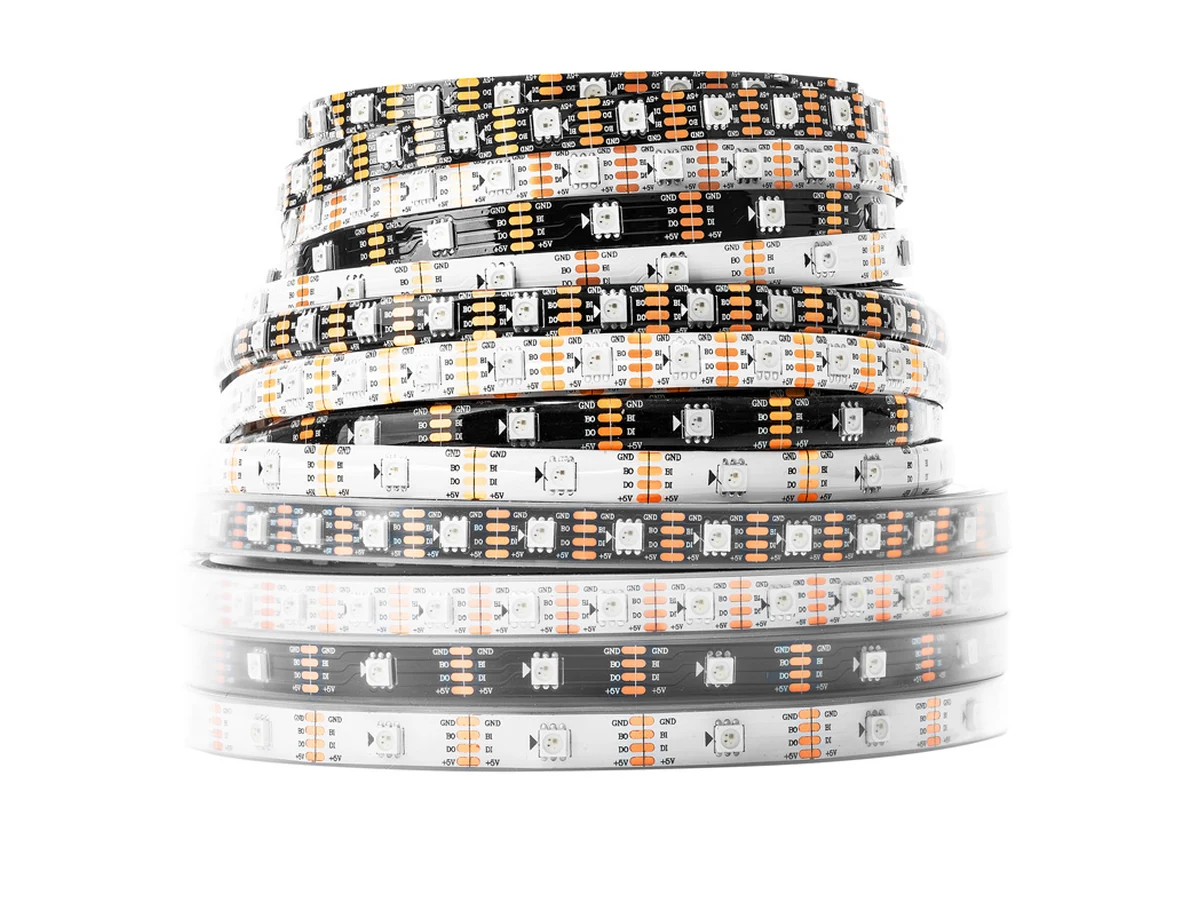

Worldsemi 5V WS2812 and WS2813 RGBIC LED strips

5V RGBIC Strip

WS2812 / WS2813 Series

Individually addressable · one LED per pixel

LED density
30 / 60 / 90 / 120 LEDs/m
Pixel density
30 / 60 / 90 / 120 pixels/m
Channel
RGB

Custom density, PCB width, strip length, waterproofing and connector.

Request Configuration

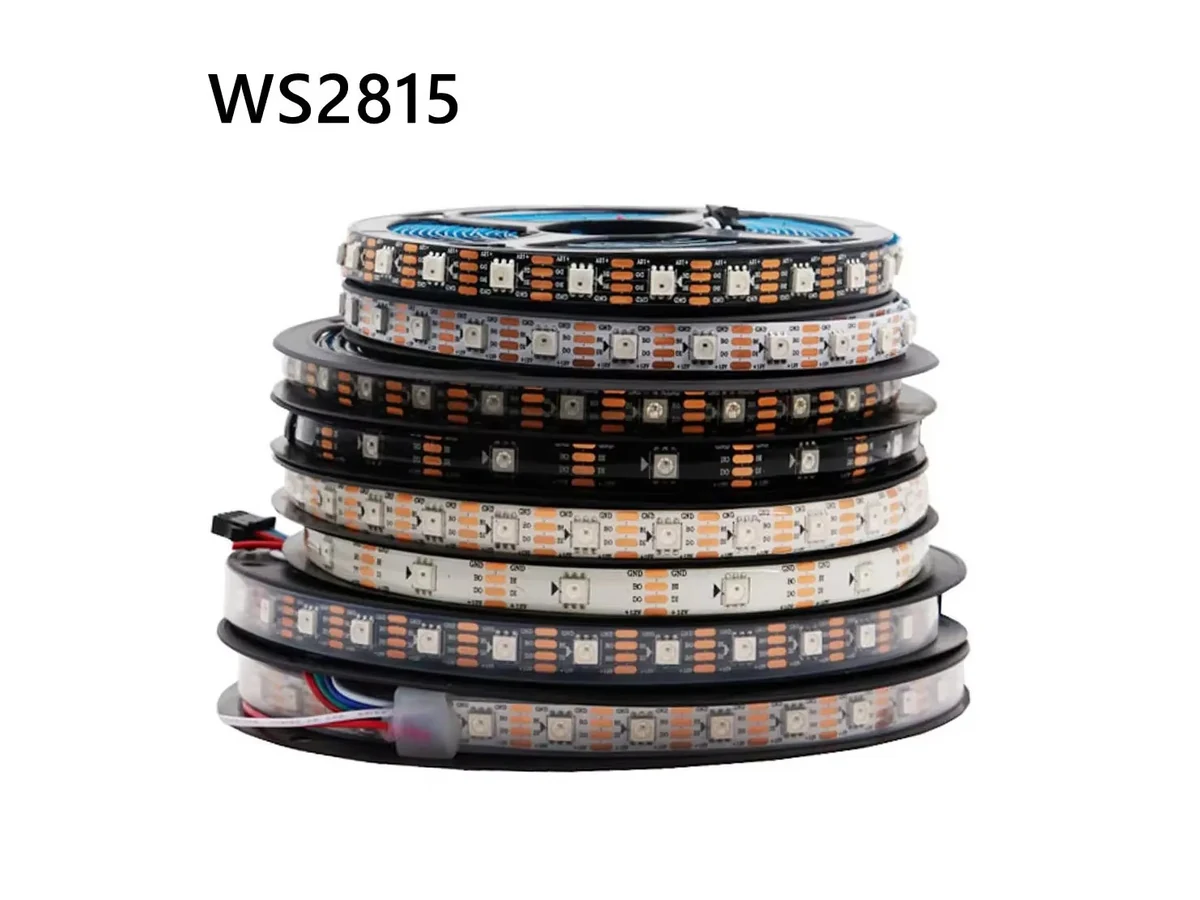

Worldsemi 12V WS2815 RGBIC LED strips

12V RGBIC Strip

WS2815 Series

Individually addressable · one LED per pixel

LED density
30 / 60 / 90 / 120 LEDs/m
Pixel density
30 / 60 / 90 / 120 pixels/m
Channel
RGB

Custom density, PCB width, strip length, waterproofing and connector.

Request Configuration

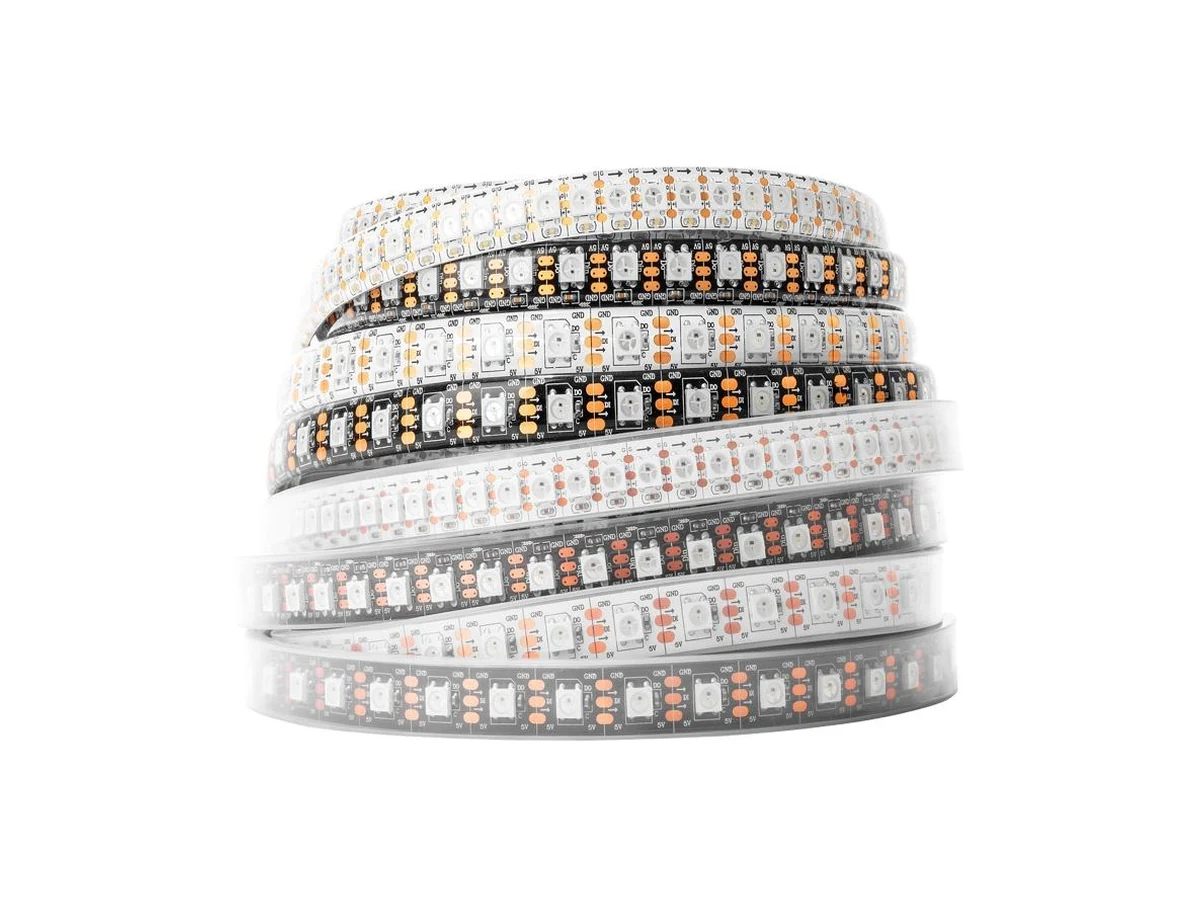

Worldsemi 5V WS2916 high-grayscale RGBIC LED strips

5V High-Grayscale RGBIC Strip

WS2916A / WS2916B

WS2916A: 5-bit current gain + 16-bit data · WS2916B: 5-bit current gain + 16-bit data · Individually addressable · one LED per pixel

LED density
30 / 60 / 90 / 120 LEDs/m
Pixel density
30 / 60 / 90 / 120 pixels/m
Channel
RGB

Custom density, PCB width, strip length, waterproofing and connector.

Request Configuration
Worldsemi 5V WS2813B RGBW addressable LED strips

5V RGBW Strip

WS2813B-RGBW

Individually addressable · one LED per pixel

LED density
30 / 60 / 90 / 120 LEDs/m
Pixel density
30 / 60 / 90 / 120 pixels/m
Channel
RGBW

Custom white-channel CCT, LED density, PCB width, waterproofing, and connector options.

Request Configuration

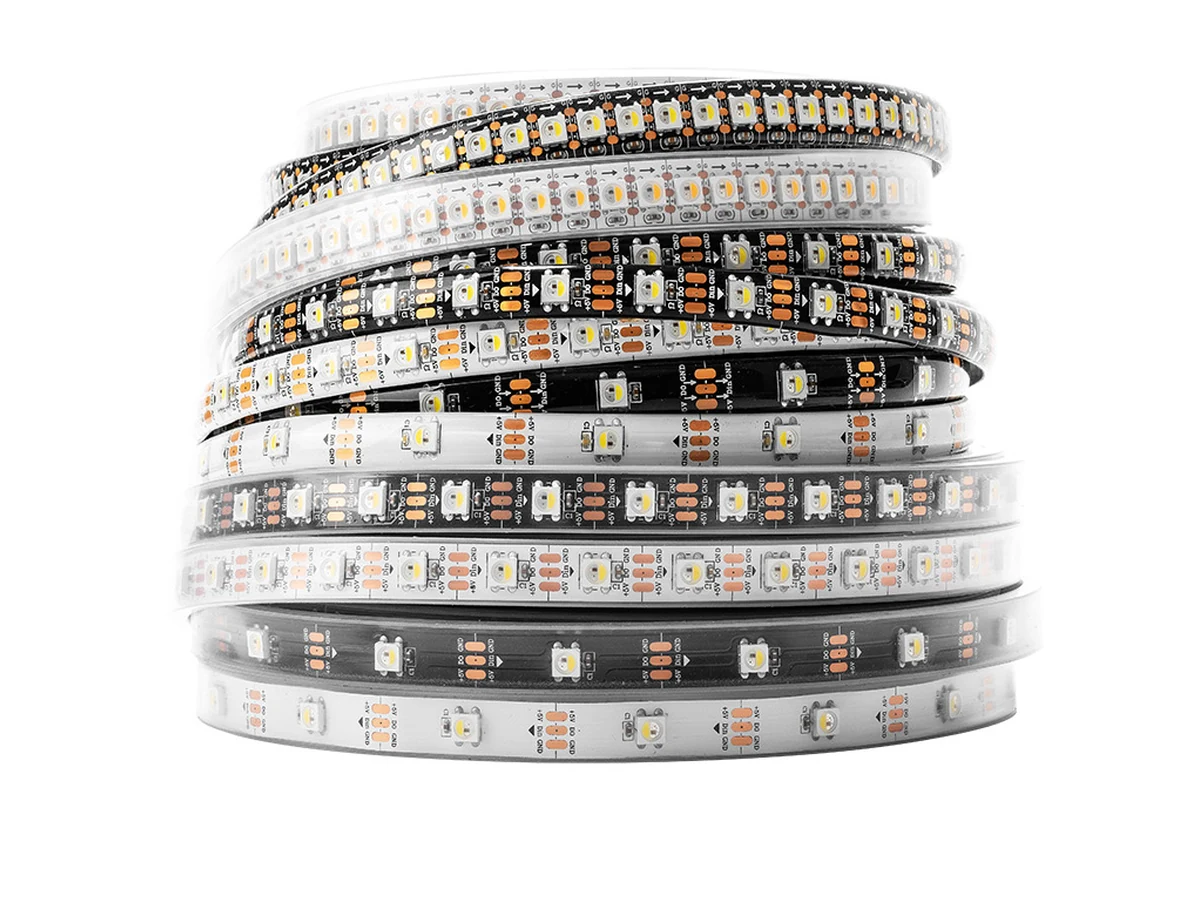

Worldsemi 12V WS2815B RGBW addressable LED strips

12V RGBW Strip

WS2815B-RGBW

Individually addressable · one LED per pixel

LED density
30 / 60 / 90 / 120 LEDs/m
Pixel density
30 / 60 / 90 / 120 pixels/m
Channel
RGBW

Custom white-channel CCT, LED density, PCB width, waterproofing, and connector options.

Request Configuration
Worldsemi 5V WS2916A high-grayscale RGBW LED strips

5V High-Grayscale RGBW Strip

WS2916A-RGBW

5-bit current gain + 16-bit data · Individually addressable · one LED per pixel

LED density
30 / 60 / 90 / 120 LEDs/m
Pixel density
30 / 60 / 90 / 120 pixels/m
Channel
RGBW

Custom white-channel CCT, LED density, PCB width, waterproofing, and connector options.

Request Configuration

Assembly capability

Custom LED PCBA

We build LED-based PCBA for equipment and lighting products, combining Worldsemi driver IC and RGBIC LED technology with board-level assembly, control interfaces and project-specific electrical design.

Equipment and control PCBAController boards, embedded lighting modules and device boards with integrated LED functions.
Typical PCBA examplesStrip controllers, lighting modules, display or inspection illumination boards, and custom device assemblies.

Engineering Collaboration

Engineering Support from Concept through Volume Production

Share your operating voltage, LED count, pixel density, channel type, PCB dimensions, waterproof rating, connector type, and application. Our team can support solution definition, prototyping, validation, and volume production.

Contact Us for a Custom Solution
