No. Category Part Number Package size Image Application Parameter Specification(PDF)
1 WS2812 Family WS2812 Family 5050/ 3535/ 2427/2020/1313/4020，Φ5 Flat,Φ5 Straw hat,Φ8 Straw hat
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
DC5V Digital LED
RGB Current：16mA*3，12mA*3，5mA*3
2 WS2812 Family WS2812B-V6 5050/ 3535/ 2427/2020/1313/4020
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
1.Ultra-Low Quiescent Power Consumption
IC standby current ≤ 1 µA;Operating current reduced from 1 mA to 200 µA; Achieving over 80% energy savings in basic power consumption.
2.Freely Interchangeable DIN/DOUT
Input/output pins can be swapped a

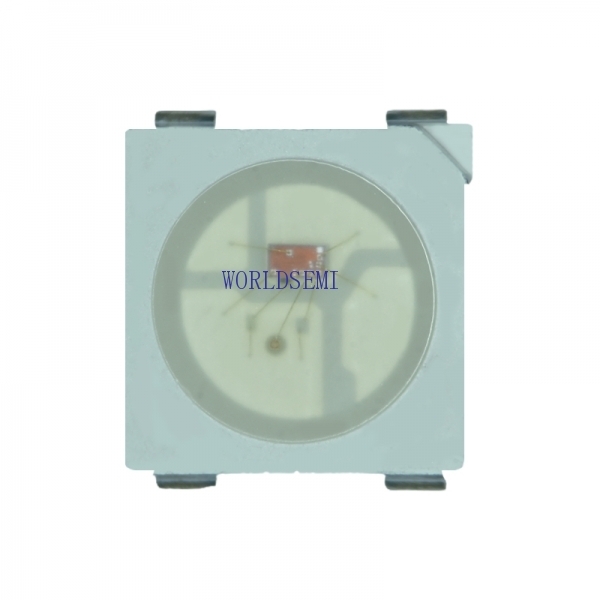

3 WS2812 Family WS2812C 5050/ 3535/ 2427/2020/1313/4020
Applications
●Consumer electronics.
●Computer and peripheral equipment, game equipment, various electrical equipment field.
Small current version，WS2812C 8bit 256 gray 3.3V-5.5V 5mA*3

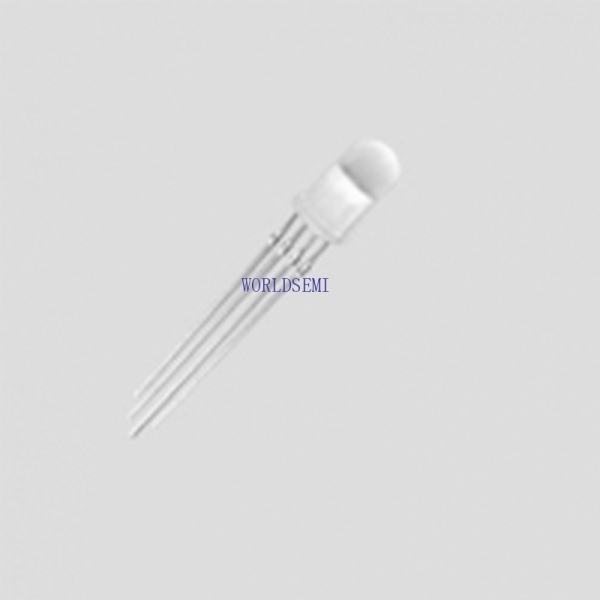

4 WS2812 Family WS2812D-V6 Φ5 Flat,Φ5 Straw hat,Φ8 Straw hat
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
● LED consumer electronics.
WS2812D-V6 8bit 256 gray 3.3V-5.5V 12mA*3
1.Ultra-Low Quiescent Power Consumption
IC standby current ≤ 1 µA;Operating current reduced from 1 mA to 200 µA; Achieving over 80% energy savings in basic power consumption.
2.Freely Interchangeable D

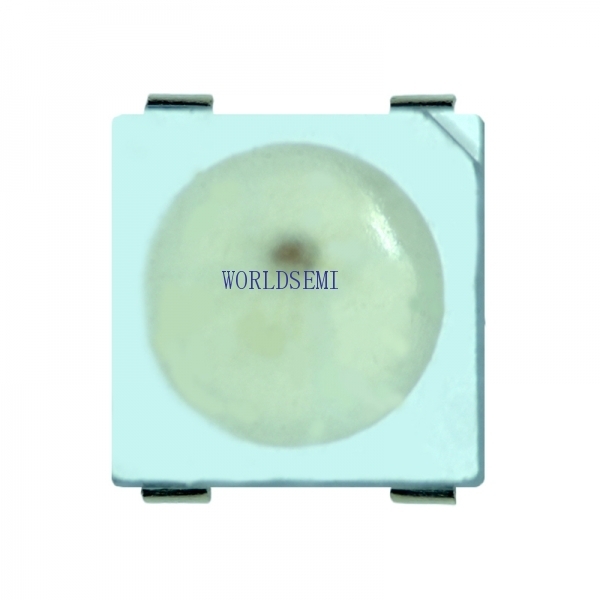

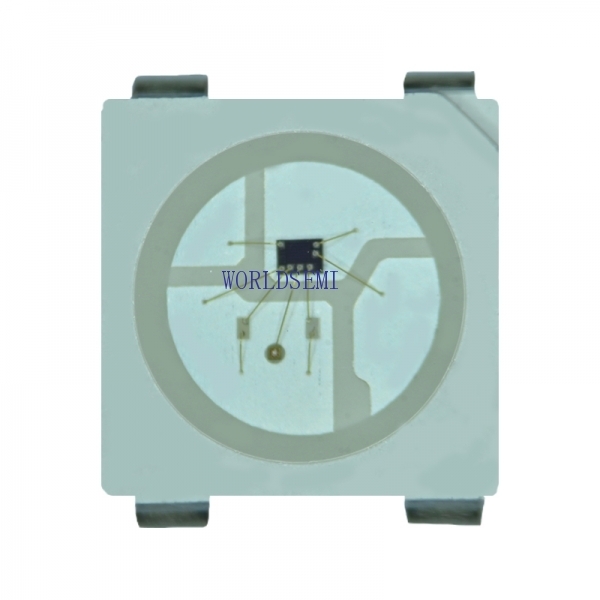

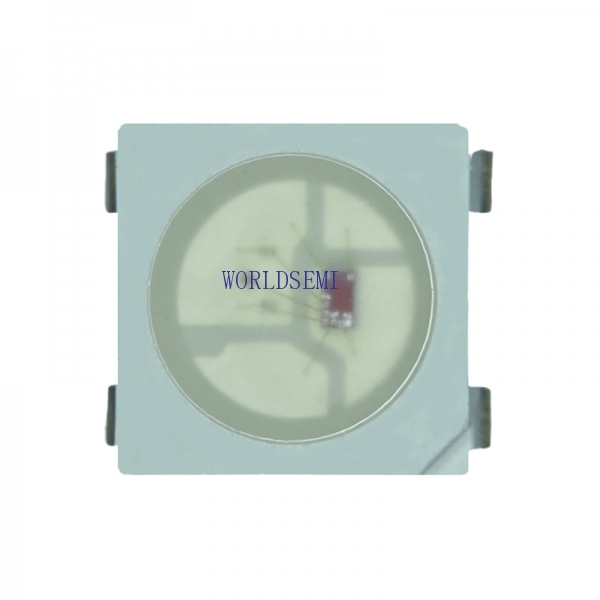

5 WS2812 Family WS2812E-V5/W 5050/ 3535/ 2427/2020/1313/4020
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
Economy version WS2812E,8bit 256 gray 3.8V-5.5V 12mA*3

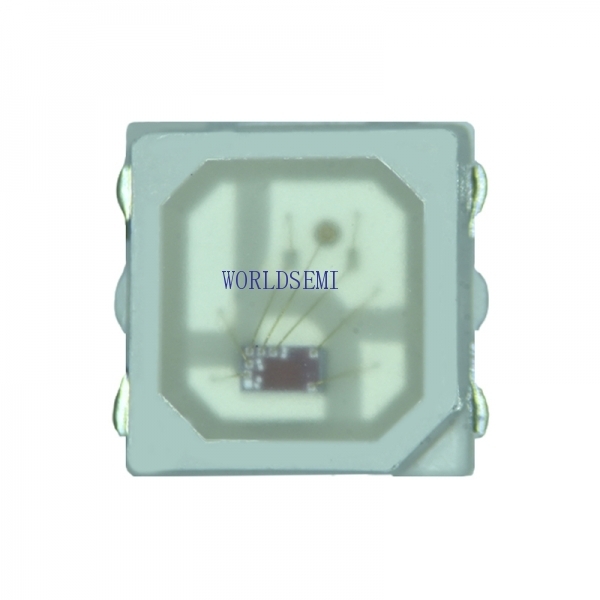

6 WS2812 Family WS2812B-MINI-X1-V6 SMD 3535 4PIN(Thin）
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-Mini-X1-V6 8bit 256 gray 3.3V-5.5V 12mA*3

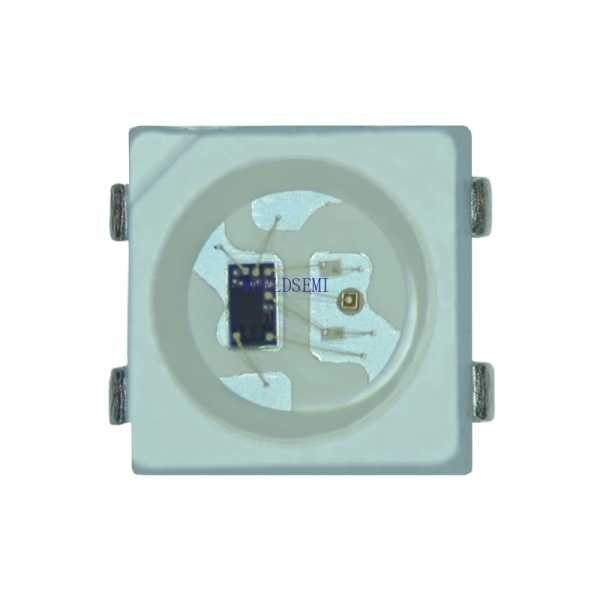

7 WS2812 Family WS2812B-MINI-V6 SMD 3535 4PIN
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-MINI-V6 SMD 3535,8bit 256 gray 3.3V-5.5V 12mA*3
1.Ultra-Low Quiescent Power Consumption
IC standby current ≤ 1 µA;Operating current reduced from 1 mA to 200 µA; Achieving over 80% energy savings in basic power consumption.
2.Freely In

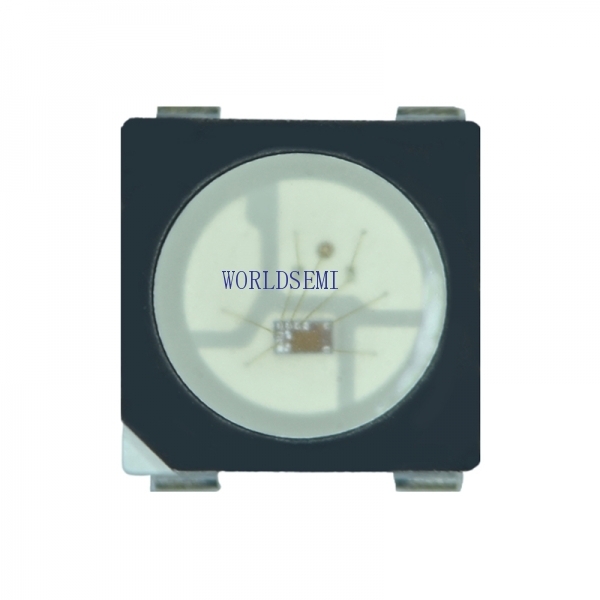

8 WS2812 Family WS2812B-B-V6 SMD 5050 4PIN
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-B-V6, 8bit 256 gray 3.3V-5.5V 12mA*3

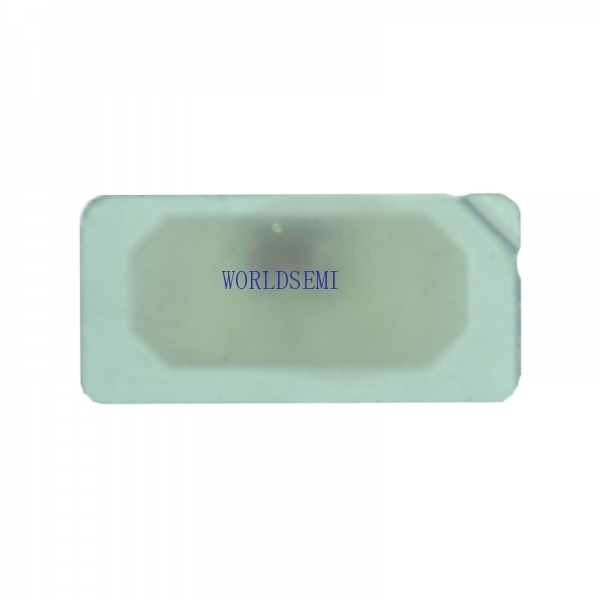

9 WS2812 Family WS2812B-4020-V6 SMD 4020 Sideview
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-4020 8bit 256 gray 3.3V-5.5V 12mA*3

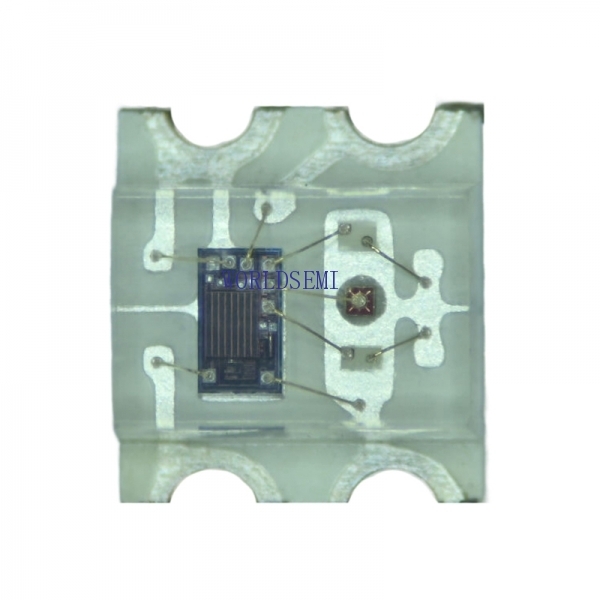

10 WS2812 Family WS2812B-2020-V6 SMD 2020 4PIN
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-2020-V6 8bit 256 gray 3.3V-5.5V 12mA*3

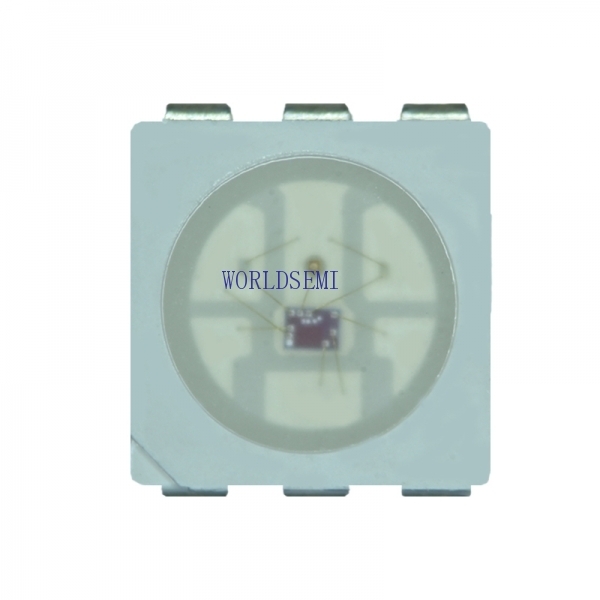

11 WS2812 Family WS2812S-V6 SMD 5050 6PIN
From KTV bars and park courtyard decoration lighting to characteristic towns, cultural tourism projects,Gaming equipment/children‘s entertainment equipment manufacturers supporting the supply of magic lights, to esports computer, smart speaker,
RGB Current：16mA*3

  • *
  • *
  • *
  • *
  • *
